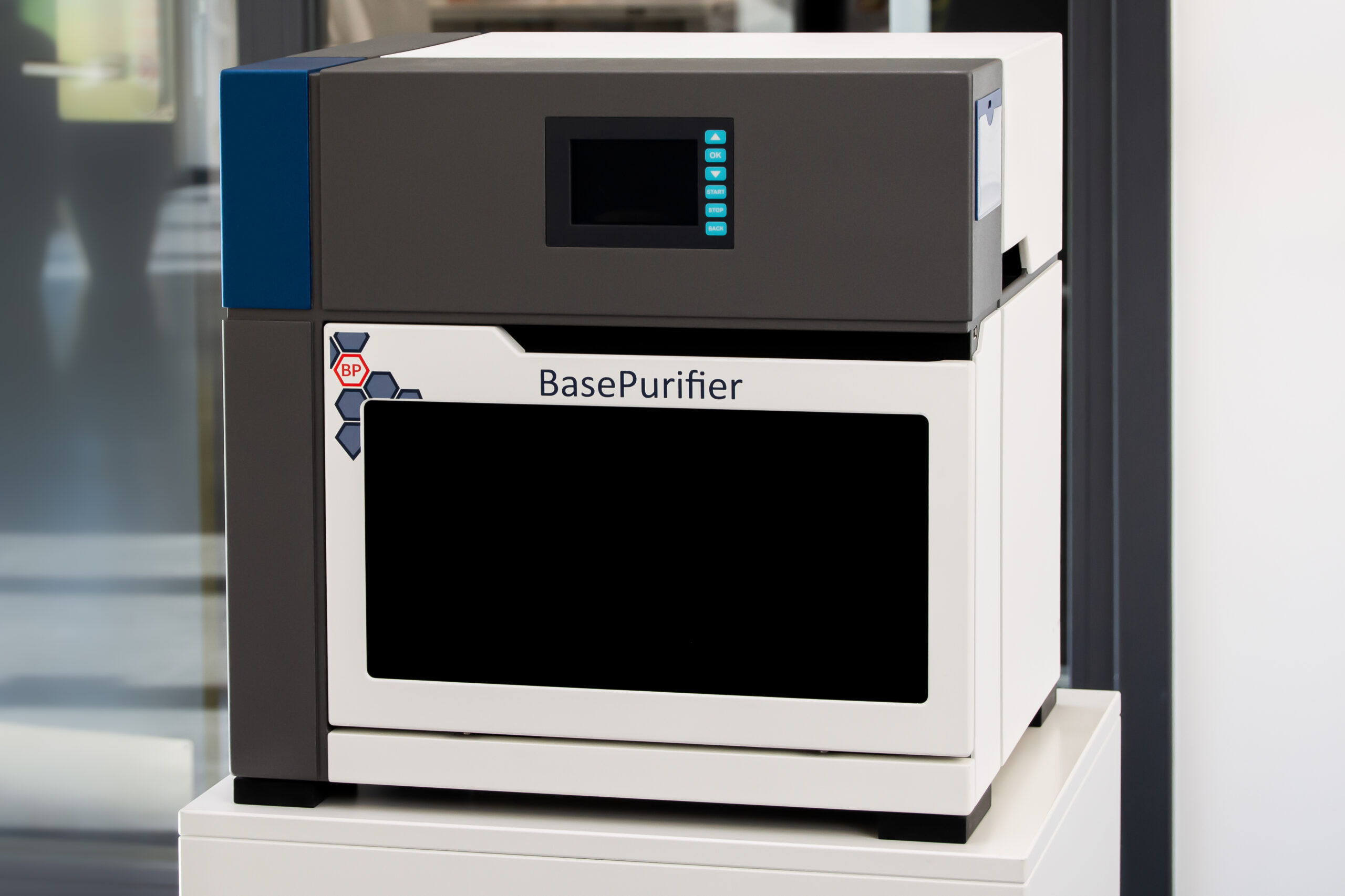

BasePurifier™ 32
Automated Nucleic Acid Extraction System
32 oscillating rods

The BasePurifier™ 32 Automatic Nucleic Acid Extraction System is used for clinical diagnostics, scientific research, disease control, food safety, forensic medicine, and other fields. With automated nucleic acid extraction, fast extraction speed, and numerous compatible sample extraction kits, the instrument provides high flexibility in nucleic acid extraction applications. The instrument has a through put of up to 32 samples per run.

  • High-degree of extraction automation
  • Fast extraction speed
  • Reliable results
  • Easy to use
IVD Assay Catalogue
Order
Product Details

Ref. No.:                         715

Product name:              BasePurifier™ 32 Automated Nucleic Acid Extraction System 32 oscillating rods

Intended Use

PentaBase’s flexible BasePurifier™ Automatic Nucleic Acid Extractor systems are designed for automated extraction of nucleic acids using magnetic beads. The instruments deliver high-quality and fast results with throughput between 32 and 96 samples. The purification workflow uses magnetic rods to move the magnetic beads through the purification phases of binding, washing, and elution. RNA and DNA is effectively extracted from whole blood (e.g. cfDNA & ctDNA), cell colonies, solid biopsies, plant material, soil, urine, faeces, and others.

Product Specifications

Capacity;                                                                           1 to 32 samples

Reaction Volume                                                             30 – 1000 μL

Recommended Sample Volume                                   200 μL

Consumables                                                                   6-strips or 96-deep well plates Sleeves

Extraction Method                                                           Magnetic rods and beads

Magnetic Rods                                                                 32 rods in frame

Speed;                                                                               12-60 minutes depending on program

Heating Temperature                                                      Lysis heating: Room temperature to 120˚C
                                                                                            Elution heating: Room temperature to 120˚C

Purification                                                                       95% for optimal samples

Disinfection                                                                      UV-lamp and 70% Ethanol

Program Storage                                                             Up to 15 programs on instrument firmware. More
                                                                                            than 500 programs on BasePurifier™ App only                                                                                             Android

Program Customisation                                                 Connection via WiFi to Android OS-based
                                                                                            tablet or phone with the “Extraction System”
                                                                                            application.

Operating Power and Noise                                           240V
                                                                                            65 db(A)

Instrument Dimension and Weight                               44 cm (L) x 43.5 cm (W) x 44.5 cm (H)
                                                                                            31.5kg (net)

Instructions For Use

The latest version of the Instructions For Use can be found at: 5ba.se/PP004 (ændre navnet)
