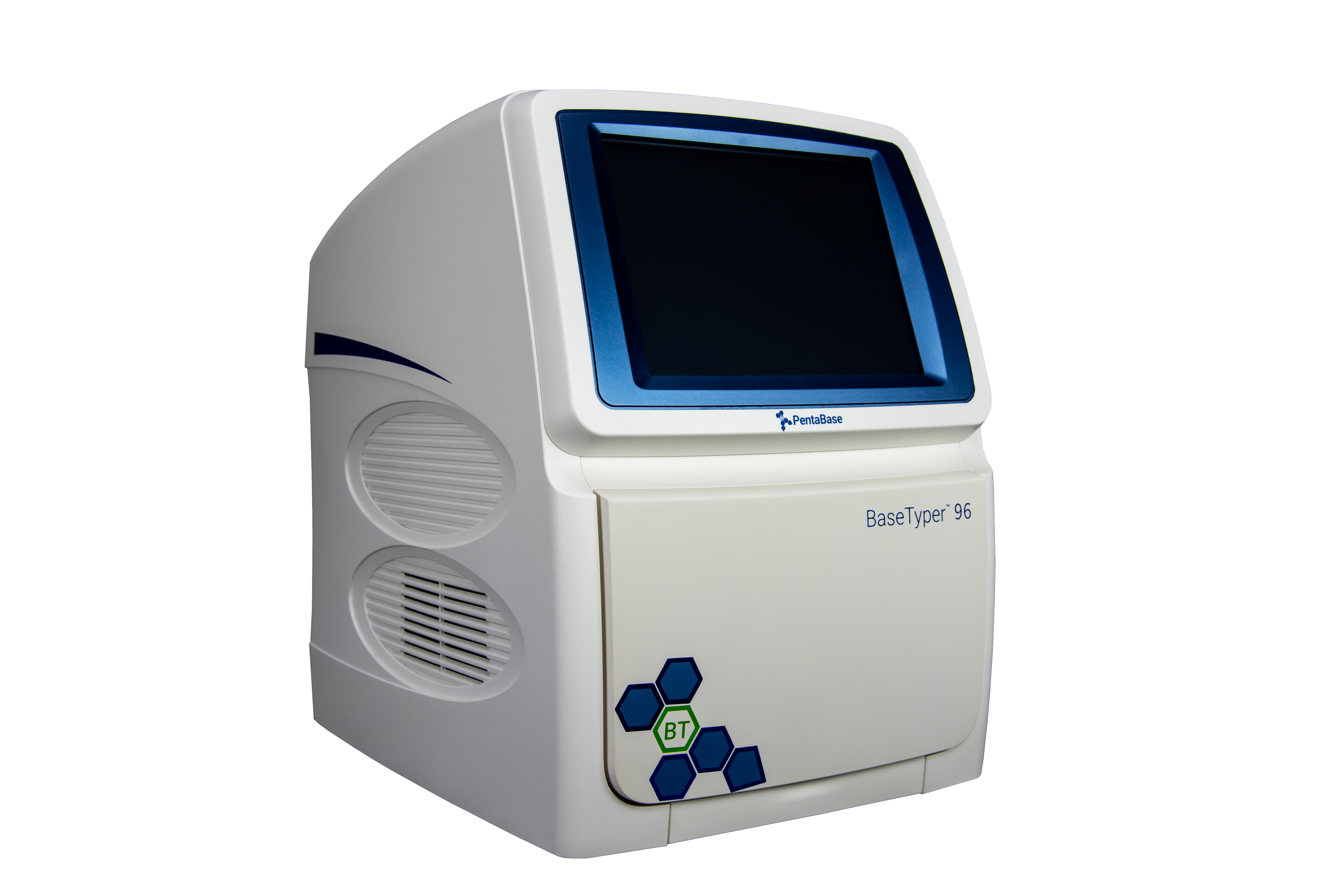

BaseTyper™ 96.4/6 Flexible Real-Time PCR System

The BaseTyper™ 96.4/6 Real-Time PCR instrument provides a highly sensitive and precise optical system and a fast heating system that produces reliable results with easy-to-use software.
The BaseTyper™ 96.4/6 is tailored to meet the needs of high-throughput laboratories by combining a capacity of 96 samples with its excellence in quality and performance.

  • High throughput
  • Intuitive software
  • Broad dynamic range
  • Peltier heating module
Product Details

Reference Number:                                                         751, 753

Product name                                                                  BaseTyper™ 96.4/6                                                                                            Flexible Real-Time PCR System

Intended Use

The BaseTyper™ series consists of Real-Time Polymerase Chain Reaction instruments to provide accurate, highly sensitive, and precise answers adaptable to your needs. The series includes BaseTyper™ 48.4 and BaseTyper™ 96.4/6 with features that can optimise and elevate your PCR workflow and overall user experience.

BaseTyper™ 48.4 is suitable to support the needs of laboratories where space and flexibility matter or for use in field testing in point of care laboratories. The BaseTyper™ 96 operates with a high throughput of 96 samples and a broad dynamic range that enables customised qualitative and quantitative analyses to fit your needs. The instrument is designed to meet high-throughput laboratories’ experimental needs, ensuring precise and sensitive results.

Product Specifications

Capacity                                                                            1 to 96 samples

Reaction Volume                                                             30 – 1000 μL

Light source and Detection                                            1. High-brightness
                                                                                            2. Long-life and maintance-free LED light source
                                                                                            3. Excitation and reading from the top

Consumables                                                                   0.2mL, non-skirt tubes, clear or frosted.
                                                                                            Single tube or 8-well strip

Excitation / Emission (nm)                                             1. 465/510
                                                                                            2. 527/563
                                                                                            3. 580/616
                                                                                            4. 632/664
Only valid for the 6.6:                                                       5. 680/730                                                                                             6. 465/616

Channel / Dye                                                                    1. FAM, SYBR Green I, etc.
                                                                                            2. VIC, HEX, TET, JOE, etc.
                                                                                            3. ROX, Texas Red, etc.
                                                                                            4. Cy5, etc
                                                                                            5. Alexa Flour
                                                                                            6. FRET

Multiplex level                                                                  BaseTyper™ 96.4 Up to 4 channels BaseTyper™ 96.6 Up to 6 channels

Experiment data storage                                                1000 completed run files

Heating Temperature
                                                                                            Heating 6.1°C/s heating
                                                                                            Cooling Rate 5°C/s cooling
                                                                                            Uniformity ± 0.1°C
                                                                                            Accuracy ≤ 0.1°C
                                                                                            Precision ≤ 0.1°C

Connection Options                                                        LAN – up to 10 instruments per computer Stand alone
                                                                                           10.4-inch touch screen, data storage of at least 1000
                                                                                           files Cloud-enabled control from PC via network or
                                                                                           USB

Operating Power and Noise                                           240V
                                                                                            50-60 Hz
                                                                                            <65 db(A)

Instrument Dimension and Weight                               47.5 cm (L) x 35.5 cm (W) x 48.4 cm (H)
                                                                                            30 kg (net)

Instructions For Use

The latest version of the Instructions For Use can be found at:

BaseTyper™ 96.4:  5ba.se/PP004 (ændre navnet)

BaseTyper™ 96.6: 5ba.se/PP004 (ændre navnet)

Assisting the Stratification of Lymphomas

The PlentiPlex MYD88 L265P assay is intended for in vitro diagnosis of the leucine to proline mutation in codon 265 of the Myeloid differentiation primary response 88 protein (MYD88 L265P) in genomic DNA (gDNA) samples. The obtained results of the PlentiPlex MYD88 L265P assay are intended for assisting in the discrimination between patients with Lymphoplasmacytic lymphoma/Waldenstrom macroglobulinemia (LPL/WM) and other non-Hodgkin lymphomas.
