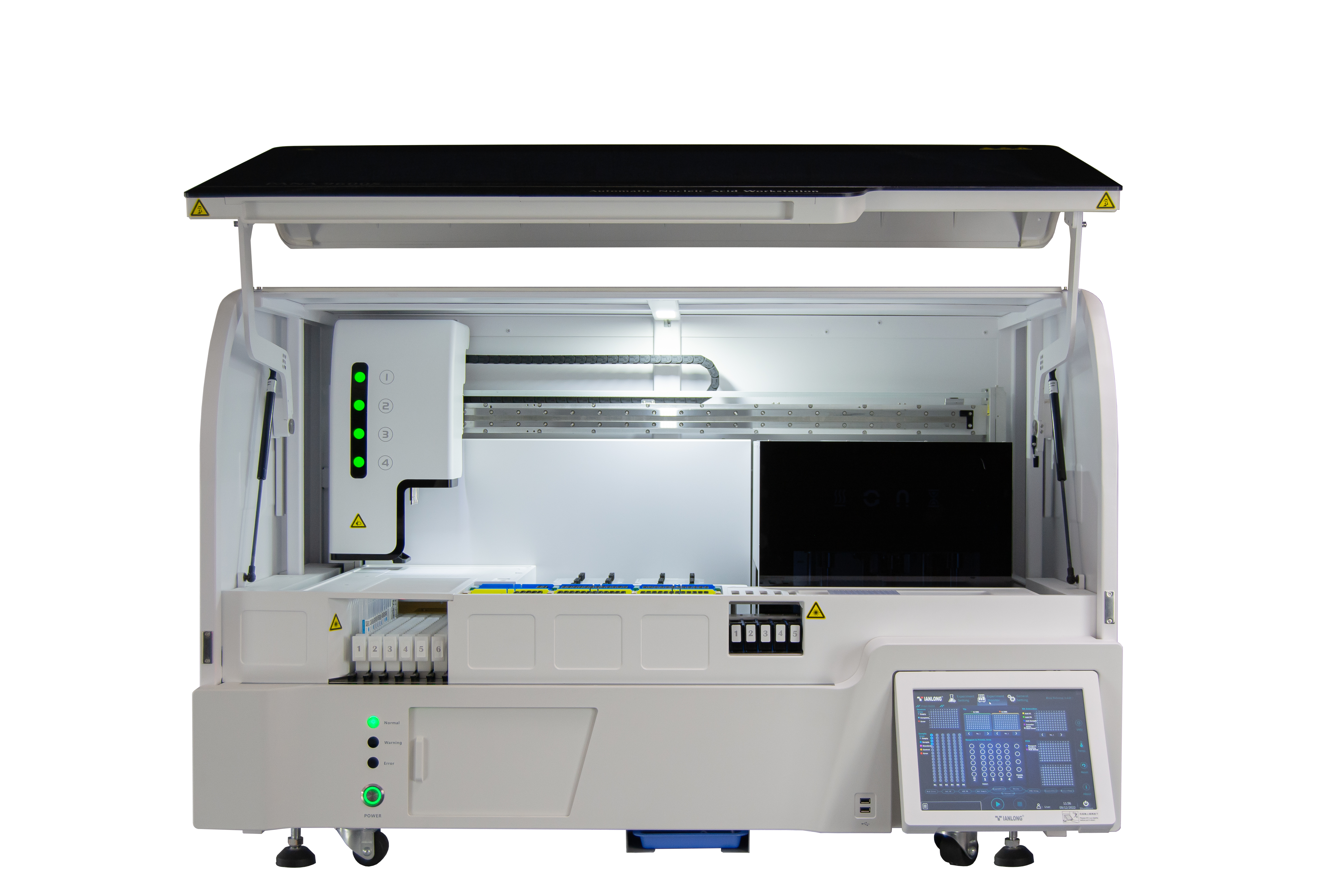

PANA 9600S Automated Pipetting Workstation

The PANA 9600S is an automated pipetting robot, which integrates the workflow of sample scanning, loading, nucleic acid extraction, and PCR set-up. The robot extracts RNA and DNA efficiently from various common samples such as whole blood, serum, plasma, swabs and urine for specific downstream applications. The PANA 9600S robot is the perfect choice for hands-free operation because of the automated workflow for a range of downstream PCR-applications. The robot reduces cross-contamination by rotary nucleic acid extraction, smart drop capture, air filtration and UV disinfection. The automated sample handling include sample barcode scanning, precise sample loading and nucleic acid extraction with accurate temperature ramp control to enable consistent results.

Product Details

Reference Number:                                                         90052

Product name                                                                  PANA 9600S                                                                                            Automated Pipetting Workstation

Intended Use

The PANA 9600S is an automated pipetting robot, which integrates the workflow of sample scanning, loading, nucleic acid extraction, and PCR set-up. The robot extracts RNA and DNA efficiently from various common samples such as whole blood, serum, plasma, swabs and urine for specific downstream applications.

The PANA 9600S robot is the perfect choice for hands-free operation because of the automated workflow for a range of downstream PCR-applications. The robot reduces cross-contamination by rotary nucleic acid extraction, smart drop capture, air filtration and UV disinfection.

The automated sample handling include sample barcode scanning, precise sample loading and nucleic acid extraction with accurate temperature ramp control to enable consistent results.

Product Specifications

Capacity                                                                            1 to 96 samples

Pipetting range                                                                5 – 1000 μL

Functions                                                                          1. Automated sample information identification
                                                                                            2. Nucleic Acid Extraction
                                                                                            3. PCR reaction set-up

Tip types                                                                           5-50 μL
                                                                                           50-1000 μL

Liquid Level Detection                                                    CapSense / Gas Pressure Sensor

Sample Types                                                                  Plasma, serum, whole blood, swab wash solution etc.

Pipetting Performance                                                    Less than 50 μL: Accuracy: A≤3.0%,
                                                                                            Repeatability: CV≤3.0%
                                                                                            More than 50 μL: Accuracy: A≤2.0%,
                                                                                            Repeatability: CV ≤1.0%

Sample Tubes                                                                  Compatible with all types of blood collection
                                                                                            tubes, 1.5 mL and 2.0 mL centrifuge tubes,
                                                                                            freezing tube and sampling cup

Extraction principle                                                         Magnetic bead extraction method transferring mixture
                                                                                            of magnetic beads and nucleic acids. Elution heating
                                                                                            at around 85°C

Interface option                                                               Built-in control computer with touch display USB2.0
                                                                                            Ethernet; Support HL7 protocol to connect with LIS

Disinfection                                                                       3 built in UV-lamps in critical areas (cabinet,
                                                                                            extraction module and waste collection) with
                                                                                            adjustable exposure time.

Consumables                                                                   Prefilled 96 deepwell-plates(Nucleic acid
                                                                                            extraction kits)
                                                                                            Stirring sleeves, black/conductive PCR single
                                                                                            tubes/strips/plates

Operating Power and Noise                                           AC 220V ± 22V
                                                                                            50-60 Hz
                                                                                            <65 db(A)

Instrument Dimension and Weight                               135 cm (L) x 82 cm (W) x 85 cm (H)
                                                                                            250 kg (net)

Instructions For Use

The latest version of the Instructions For Use can be found at: 5ba.se/PP004 (ændre navnet (der er ikke noget link))
