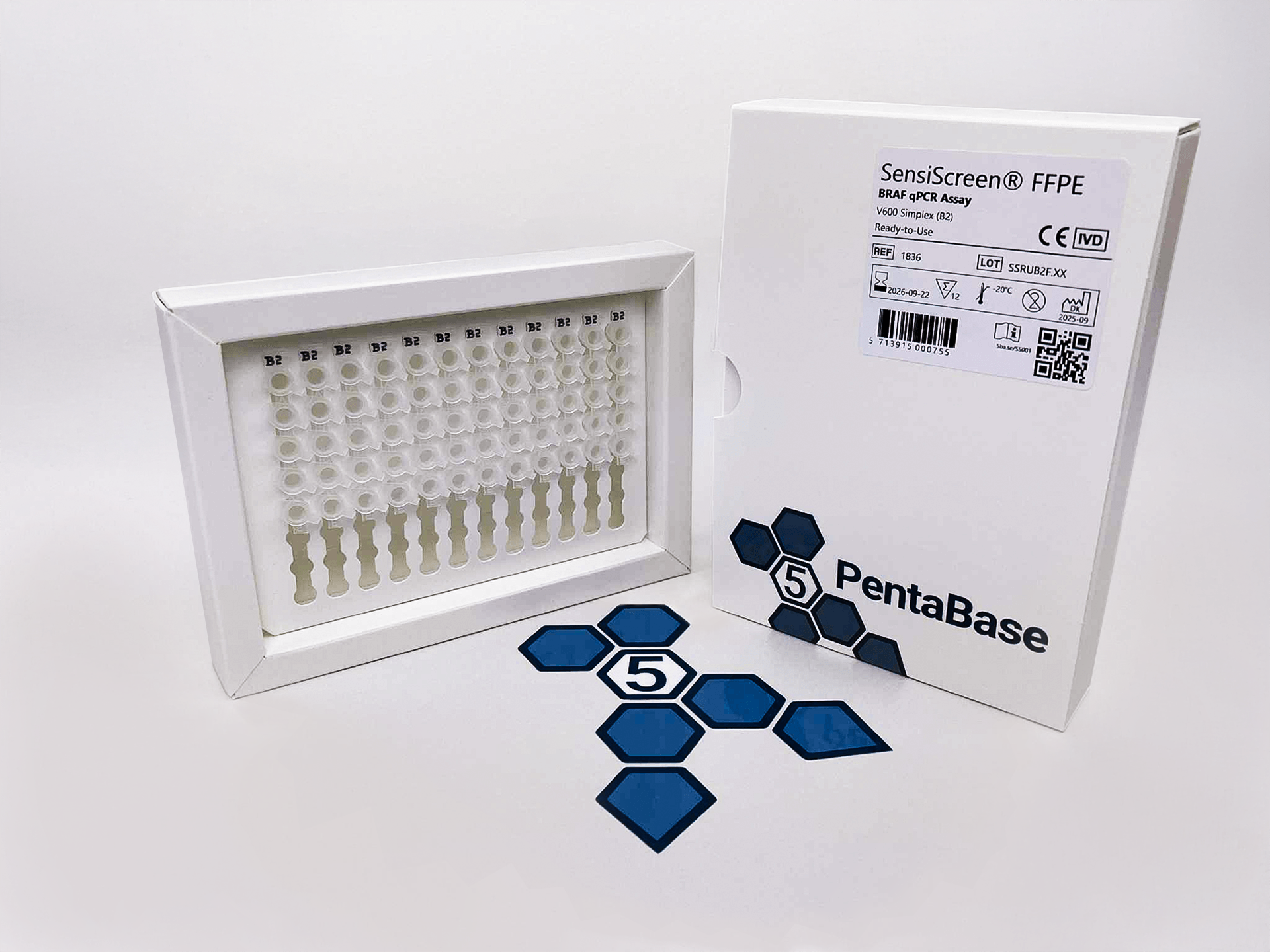

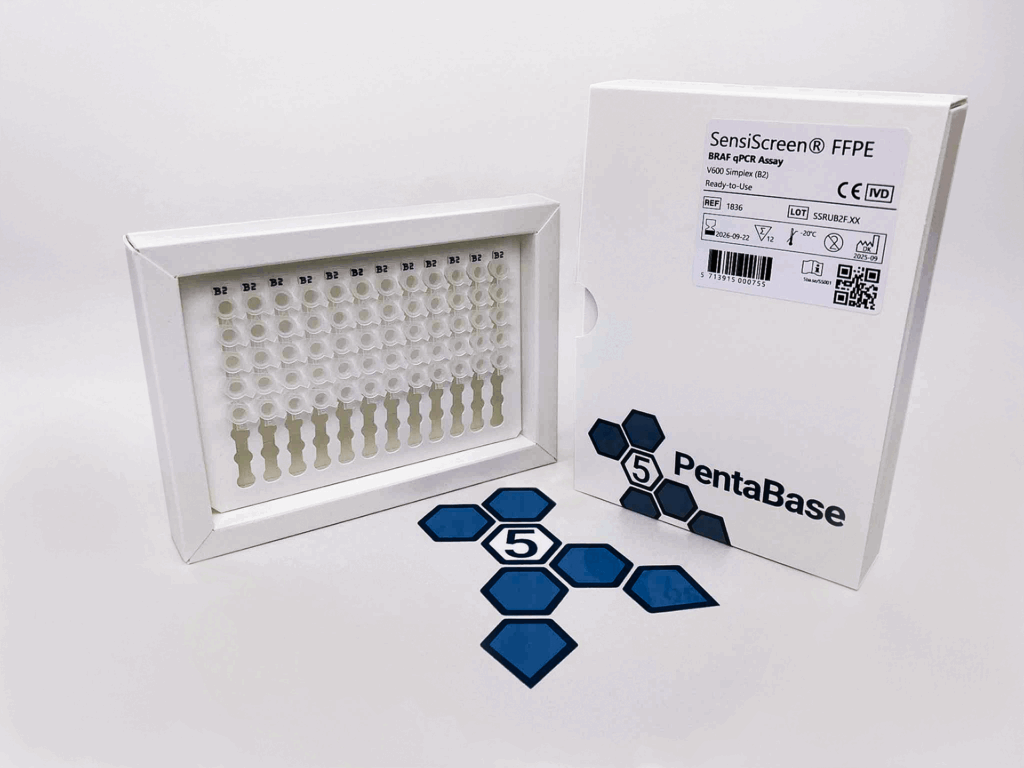

SensiScreen® FFPE BRAF qPCR Assay

SensiScreen® FFPE BRAF qPCR Assay is an In vitro Diagnostic Assay for Sensitive Detection, Identification and Quantification of the BRAF V600 Mutational Status

  • 0.2-1.9% limit of detection (LOD)
  • Run Time in less than 2 hours
  • Based on INA® technology
  • Ready-to-Use optionality
  • Minimal hands-on time
  • Open platform design*

*Compatible with most Real-Time PCR Systems including Agilent, Applied Biosystems, Bio-Rad, BMS, Qiagen and Roche. Validated on MyGo Pro (IT-IS Life Science), Mx3000P (Agilent) and CFX96 (Bio-Rad) Real-Time PCR Systems

Format

Dispense Ready (DR) and Ready-to-Use (RTU)

Number of Reactions

DR version contains 20 reactions and RTU version contains 12 reactions

Analysis

SensiScreen® FFPE BRAF qPCR Assay targets one or more mutations in codon 600 of the human BRAF gene.

Genomic targets:

BRAF V600 Multiplex (V600D; V600E+E2; V600K; V600R) (B1)
BRAF V600 Simplex (V600D; V600E; V600K; V600R) (B2)
BRAF V600E Simplex (V600E) (B3)

Product Details

SensiScreen® FFPE BRAF qPCR Assay                        Reference number                        Reference number
                                                                                            Dispense Ready (DR)                    Ready-To-Use (RTU)
                                                                                            20 reactions                                   12 reactions


BRAF V600 Multiplex (B1)                                               1398                                                1831


BRAF V600 Simplex (B2)                                                 1402                                                1836


BRAF V600E Simplex (B3)                                               1400                                                1841


Product Description

SensiScreen® FFPE BRAF qPCR Assay is an In vitro Diagnostic Assay for Sensitive Detection, Identification and Quantification of the BRAF V600 Mutational Status.

SensiScreen® FFPE BRAF qPCR Assay product variants include the complete range of targeted BRAF V600 mutations in a multiplex format (product variant B1) and simplex format (product variant B2) or specifically target the BRAF V600E variant (product variant B3).

Each product variant is in addition supplied as both a Dispense Ready (DR) version and a Ready-to-Use (RTU) version. DR assays include oligonucleotide mixtures and Master Mix in separate tubes which need to be dispensed into suitable plasticware before addition of template. RTU assays are pre-dispensed in PCR strip tubes and only need the addition of template before real-time qPCR amplification.

SensiScreen® FFPE BRAF qPCR Assay combines allele-specific PCR with PentaBase’s novel and selective technologies comprising both HydrolEasy® probes, SuPrimers™ and BaseBlockers™ for specific and sensitive target amplification. The SensiScreen® FFPE BRAF qPCR Assay is based on PentaBase’s unique intercalating nucleic acid (INA®) technology and the inclusion of intercalating pseudonucleotides (IPNs), which are synthetic DNA analogues comprising a flat heteroaromatic, hydrophobic molecule and a linker. IPN molecules are inserted into the oligonucleotides at fixed positions during oligonucleotide synthesis. The SensiScreen® FFPE BRAF qPCR Assay contains both standard and INA® oligonucleotides.

Intended Use

Intended purpose:
SensiScreen® FFPE BRAF qPCR Assay is a semi-quantitative real-time Polymerase Chain Reaction (PCR) assay intended for the semi-quantitative detection of specific somatic v-Raf murine sarcoma viral oncogene homolog B (BRAF) gene mutations in human DNA purified from solid biopsies such as Formalin-Fixed Paraffin-Embedded (FFPE) tissue. The assay is used with real-time PCR systems and samples can be prepared using automated platforms or in manual workflows. SensiScreen® FFPE BRAF qPCR Assay is an in vitro diagnostic medical device intended to detect, identify, and quantify the EGFR somatic mutational status for stratification. It is not intended as a companion diagnostic device.


Intended user:
SensiScreen® FFPE BRAF qPCR Assay is intended for use by healthcare professionals or qualified laboratory personnel instructed and trained in the techniques of real-time PCR as well as proficient in handling biological samples. Medical interventions based on results from this product require medical authorisation.

Product Specifications

Procedure                                                                 Real-time PCR – Assay is designed to run on open
                                                                                    platforms with at least two-channels (green and yellow)

Validated Real-Time PCR instruments                 Mx3000P™ (Agilent), MyGo Pro (IT-IS Life Science) and
                                                                                    CFX96 (Bio-Rad)

PentaBase technologies                                        Based on our INA® technology. The mutation-specific
                                                                                    assay contains a HydrolEasy® probe, a BaseBlocker™, a
                                                                                    mutation-specific primer set and an internal control
                                                                                    assay

Genomic target                                                        Codon 600 of the human BRAF gene

Sample types                                                            FFPE

Sample tumor cell percentage                              At least 20%

Sample DNA extraction methods                         Relevant commercially avaliable solid biospy/FFPE DNA
                                                                                    extraction kits

Sample input                                                            5-50 ng of DNA per reaction (1-10 ng/µL)

PCR run time                                                            Less than 2 hours

Instructions For Use

The latest version of the Instructions For Use (IFU) can be found at: https://5ba.se/SS001

Publications

Sørensen et al. – PLoS One – 2023 – Click here for article

Related files
File
File name
Size
pdf
Flyer – SensiScreen® FFPE
pdf
MSDS – SensiScreen® FFPE BRAF
229 KB

INA®-based IVD PCR assays with superior performances

Our IVD PCR assays are based on a unique INA® oligonucleotide chemistry with superior target affinity and specificity. The INA®-based IVD PCR assay portfolio including SensiScreen®, PlentiPlex™ and EpiDirect® product families offer excellent performances, are easy to implement in standard laboratory workflows and provide results in a couple of hours.

Related products

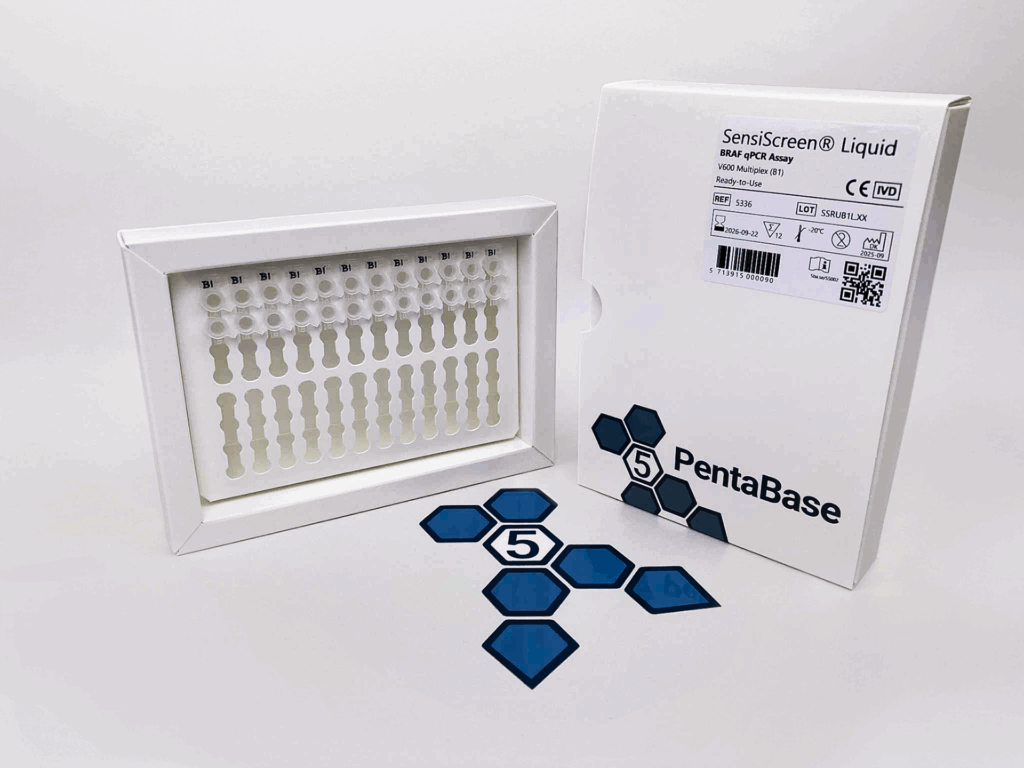

SensiScreen® Liquid BRAF qPCR Assay, CE-IVD
Somatic cancer mutations

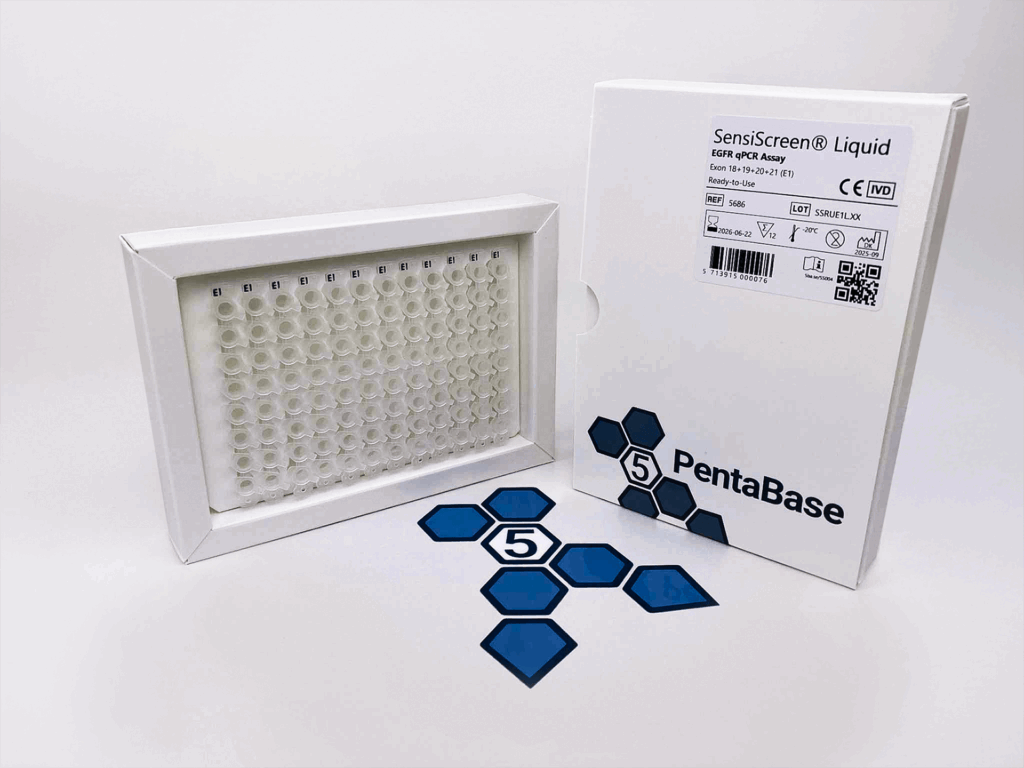

SensiScreen® Liquid EGFR qPCR Assay, CE-IVD
Somatic cancer mutations

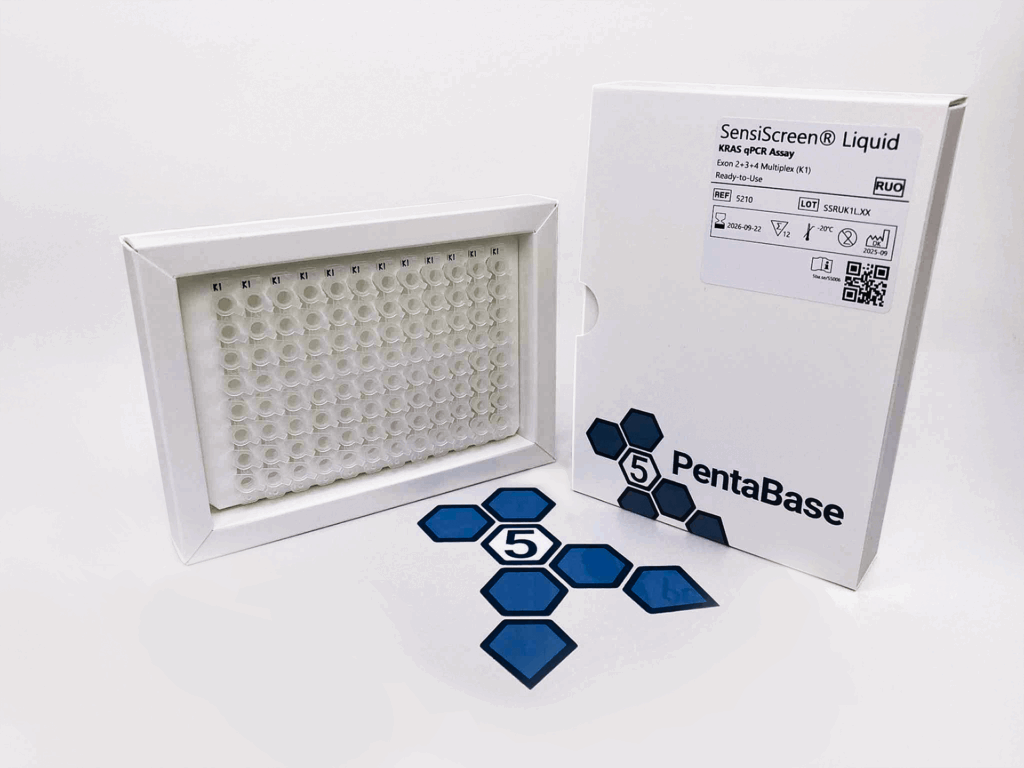

SensiScreen® Liquid KRAS qPCR Assay, RUO
Somatic cancer mutations

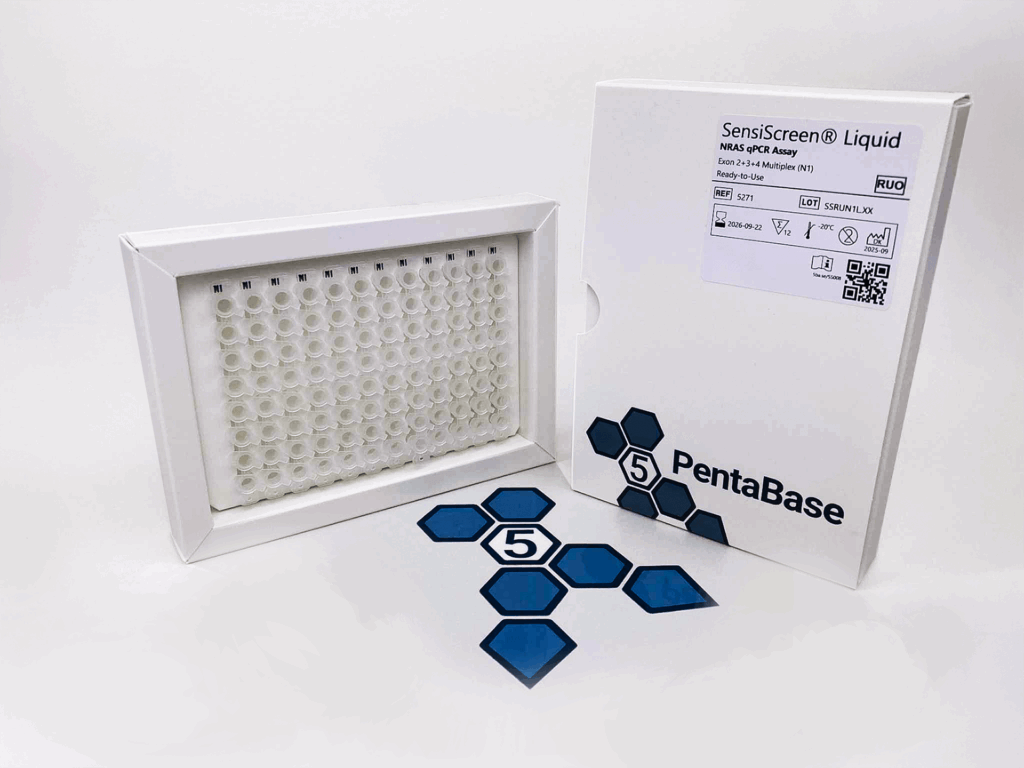

SensiScreen® Liquid NRAS qPCR Assay, RUO
Somatic cancer mutations
SensiScreen® Liquid KIT qPCR Assay, CE-IVD
Somatic cancer mutations
SensiScreen® Liquid PIC3CA qPCR Assay, CE-IVD
Somatic cancer mutations

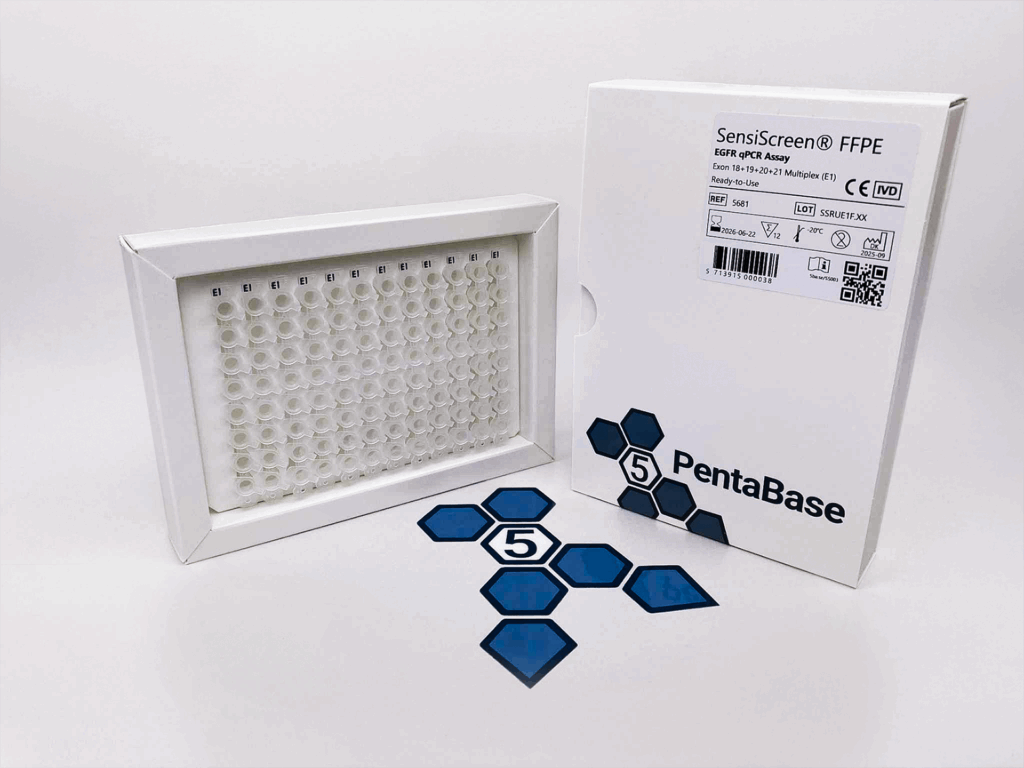

SensiScreen® FFPE EGFR qPCR Assay, CE-IVD
Somatic cancer mutations
SensiScreen® FFPE BRAF qPCR Assay, CE-IVD
Somatic cancer mutations

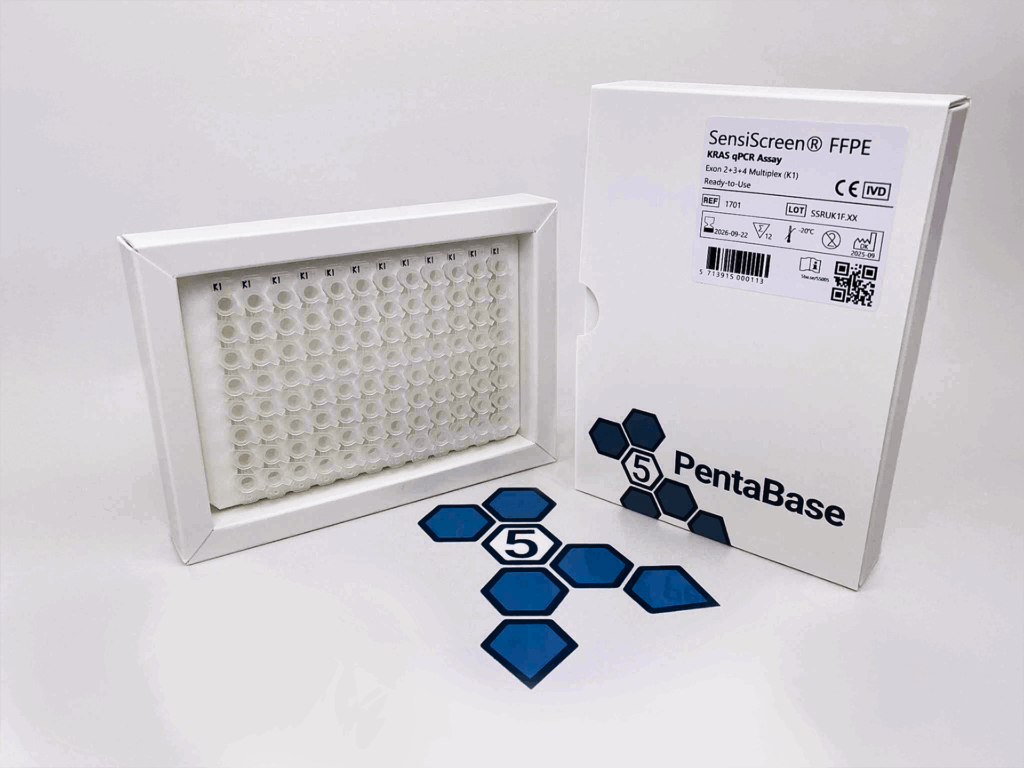

SensiScreen® FFPE KRAS qPCR Assay, CE-IVD
